Ditto Pro 3D Printer by Tinkerine

The Machine

SD Card slot
Screen
Knob - Spin
Knob - Button press
120mm/s
Build Volume 21.5 x 16 x 22 cm
Filament Diameter 1.75mm
Nozzle Diameter 0.35mm

Materials

PLA plastic
Use purple glue stick on the glass bed

Changing Filament

1. Select Wizard by spinning the knob and then pressing the knob — 1. Select Wizard by spinning the knob and then pressing the knob

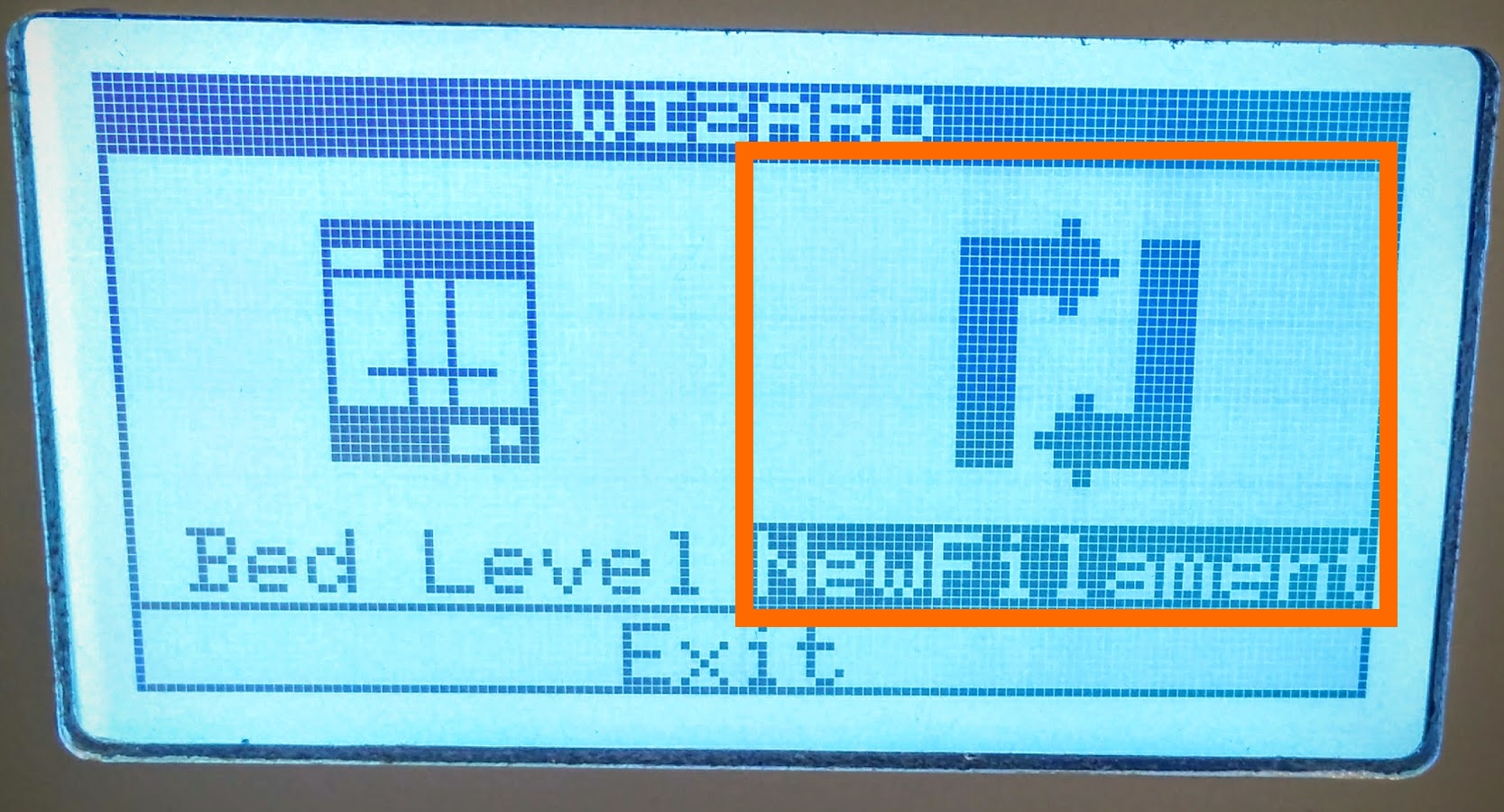

2. Select NewFilament — 2. Select NewFilament

3. Follow the on-screen instructions (Continue) — 3. Follow the on-screen instructions (Continue)

4. Wait for the extruder to heat up — 4. Wait for the extruder to heat up

5. (this actually contains multiple steps) — 5. (this actually contains multiple steps)

5.1  Pull the filament out (you may have to push the small silver button) — 5.1 Pull the filament out (you may have to push the small silver button)

The small silver button on the right will open the gears that hold onto the filament

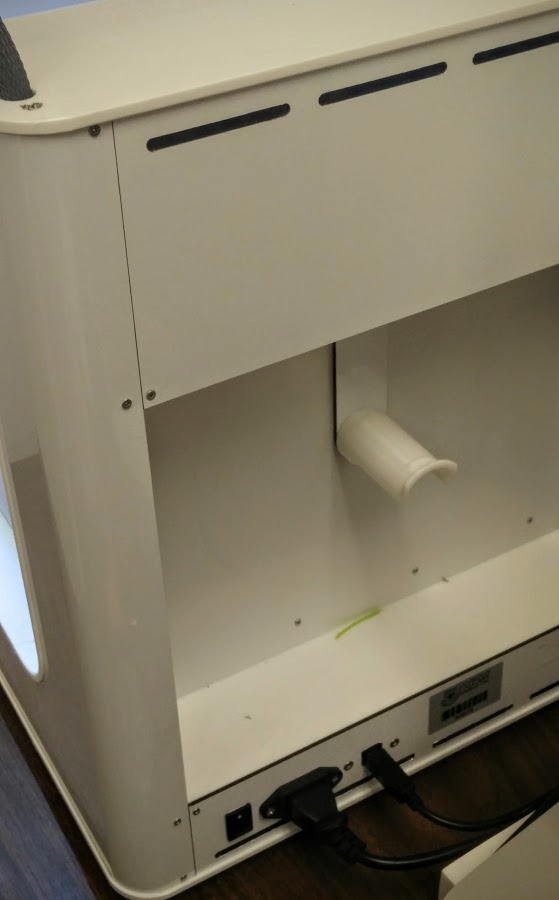

5.1 Remove old filament from the back of the printer and put new filament on — 5.1 Remove old filament from the back of the printer and put new filament on

5.2 Push the new filament into the top of the extruder while pressing (hard) on the silver button. Stop when you see your new color coming out (green to orange in this picture) — 5.2 Push the new filament into the top of the extruder while pressing (hard) on the silver button. Stop when you see your new color coming out (green to orange in this picture)

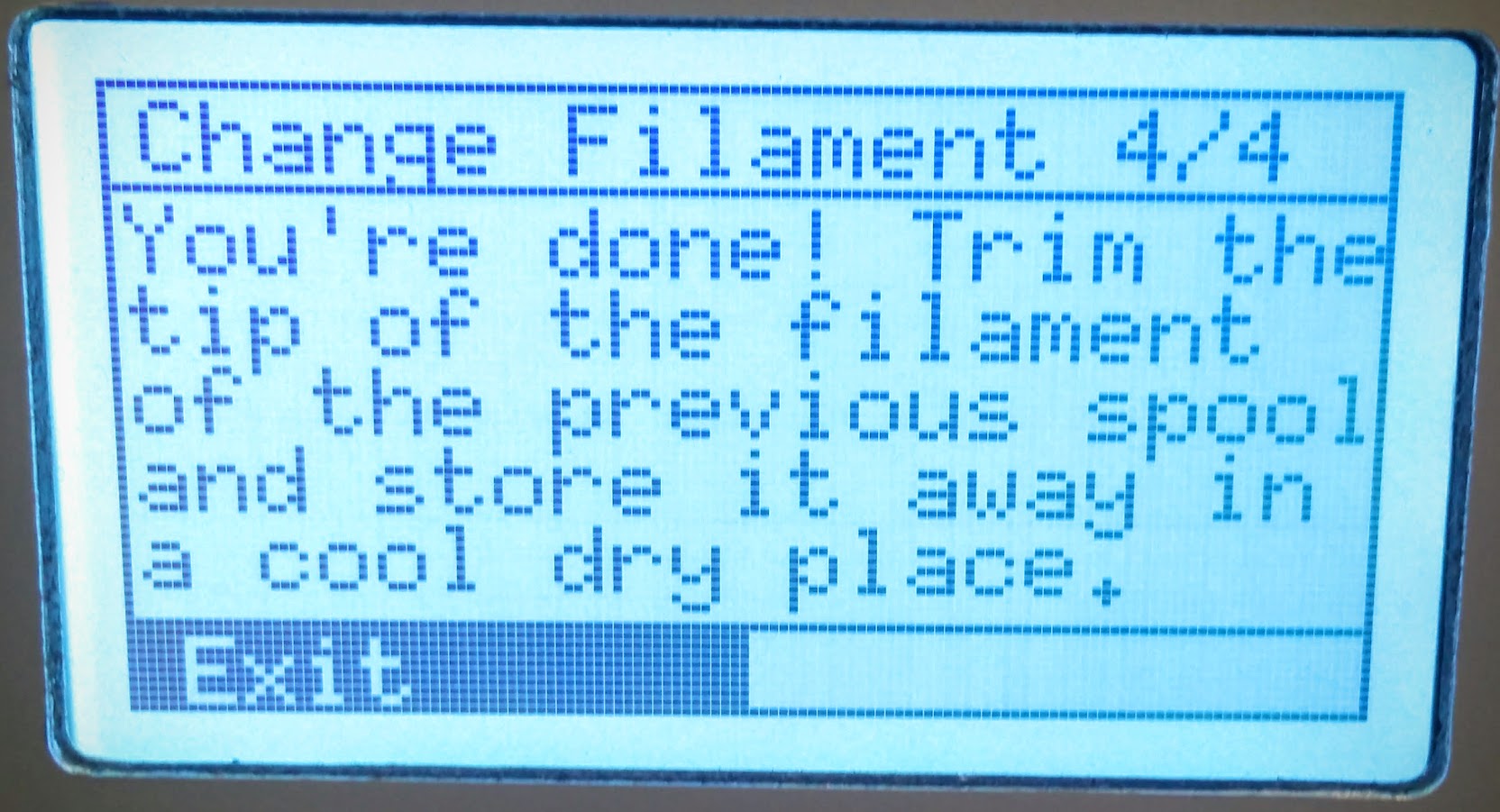

6. You're all done! Clean up the extruded filament and store your old filament

Leveling the Bed

1. Select the Wizard by spinning the knob and pressing the knob to select — 1. Select the Wizard by spinning the knob and pressing the knob to select

2. Follow the on-screen instructions. You will level the bed in three steps. — 2. Follow the on-screen instructions. You will level the bed in three steps.

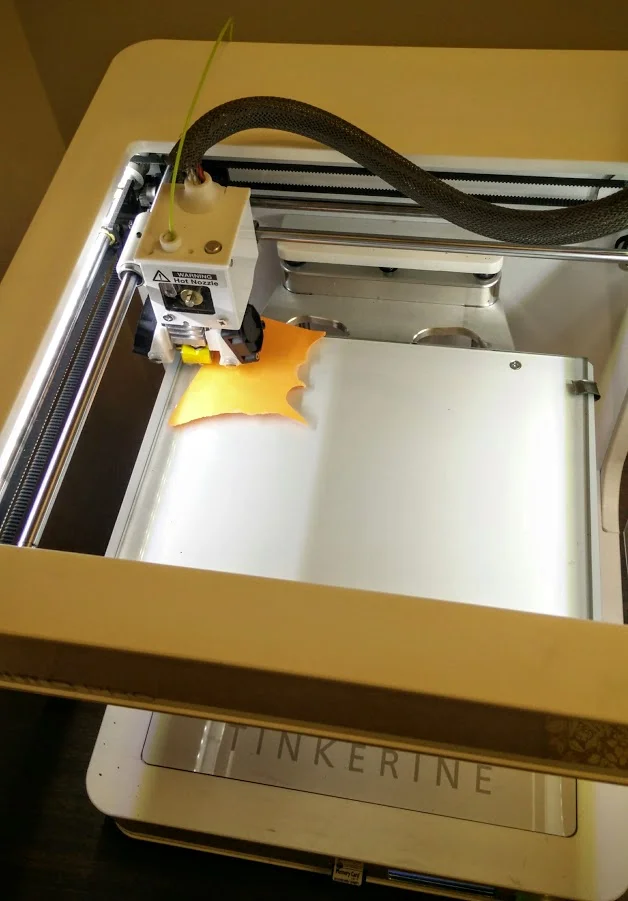

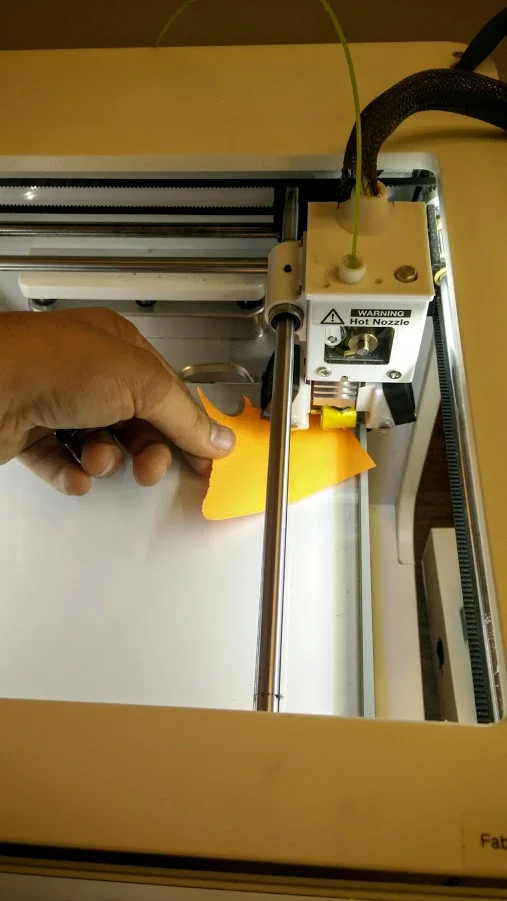

3. For each position in the bed level turn the thumb screws to adjust the bed up and down — 3. For each position in the bed level turn the thumb screws to adjust the bed up and down

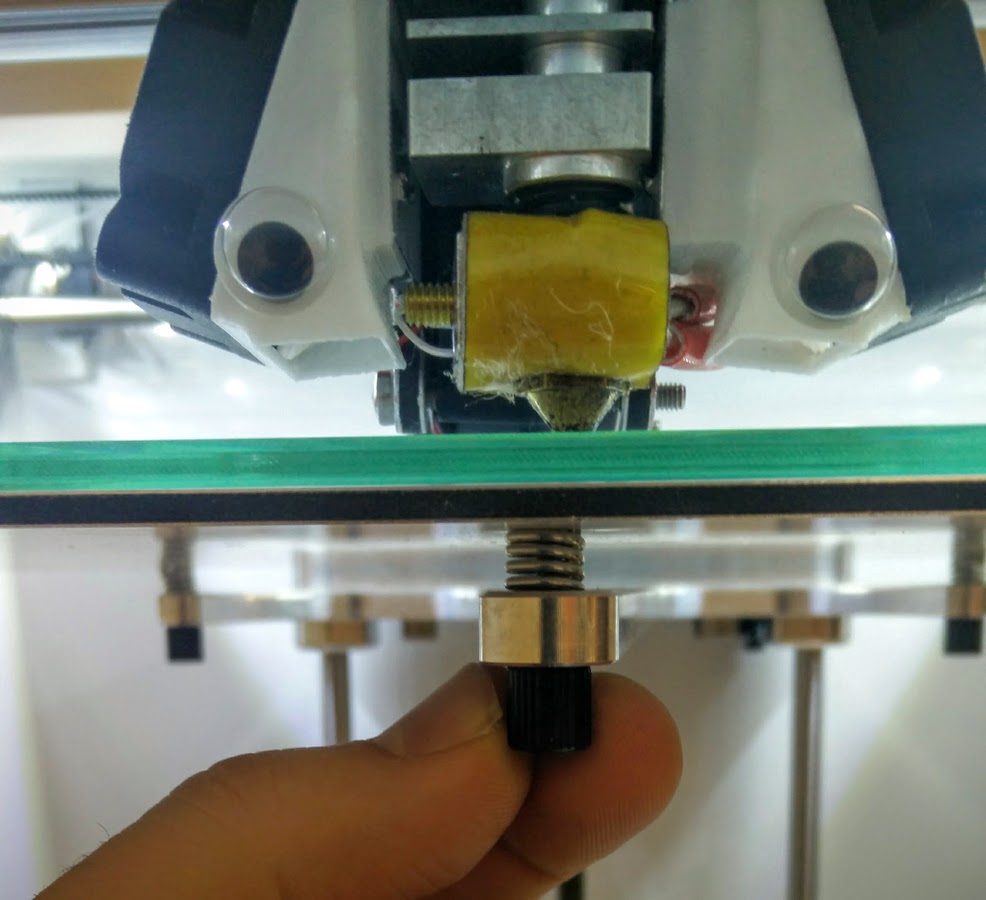

The thumb screw — The thumb screw

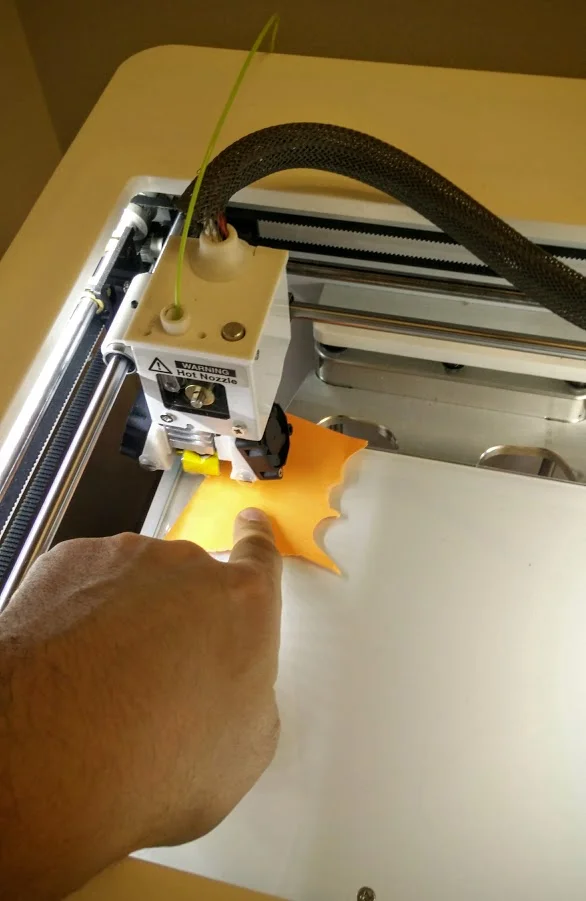

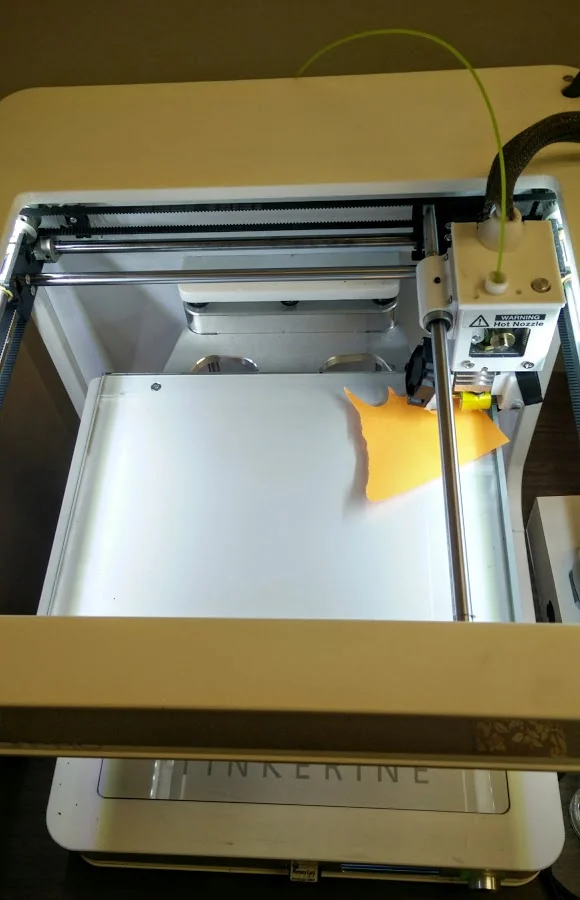

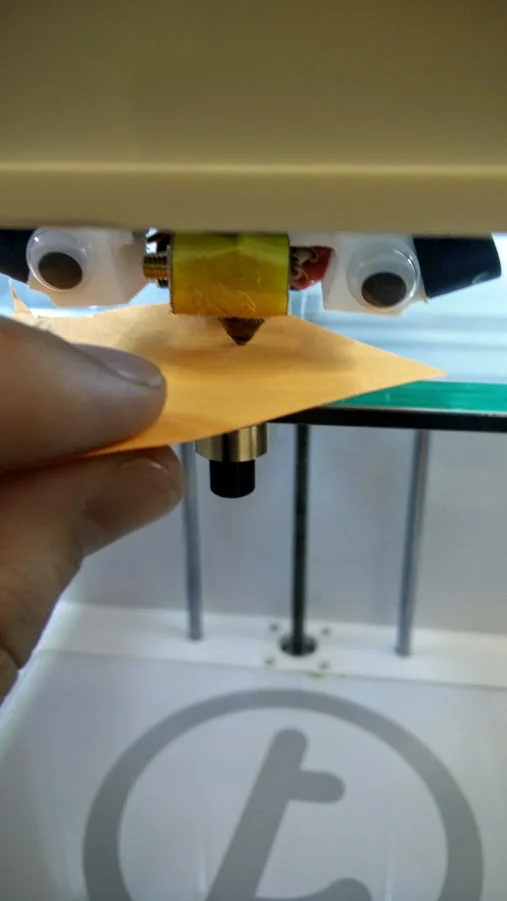

Tighten screw until there is a small amount of friction between paper and extruder

Print Something

1. Get some purple gluestick!

2. Apply gluestick to glass bed where the print will be (no need to make a thick layer) — 2. Apply gluestick to glass bed where the print will be (no need to make a thick layer)

3. Clip the glass bed onto the main platform — 3. Clip the glass bed onto the main platform

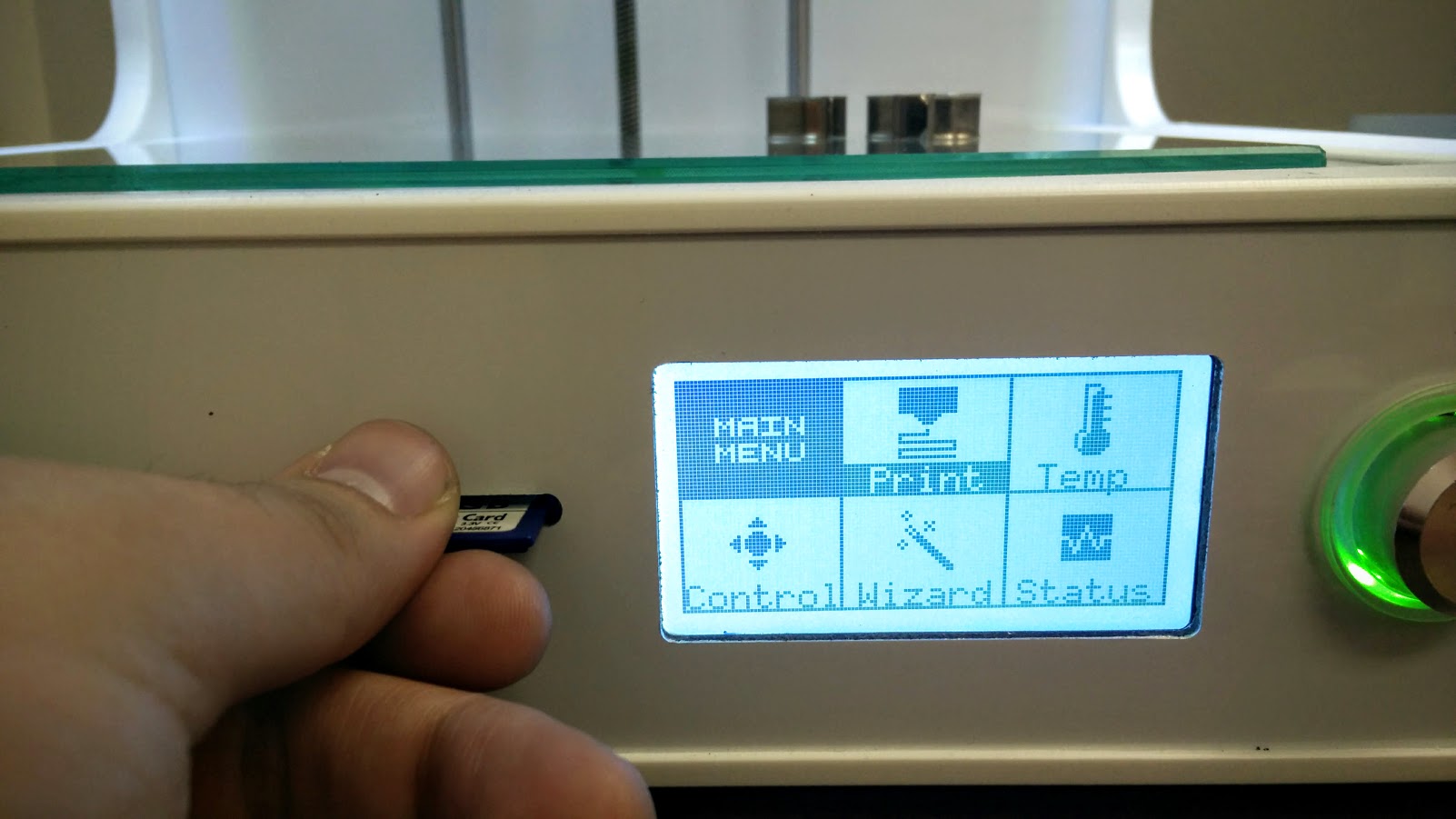

4. Insert SD Card (juuuust right, has to be carefully inserted into the center) — 4. Insert SD Card (juuuust right, has to be carefully inserted into the center)

5. Select Print by spinning the knob and pressing the knob to select — 5. Select Print by spinning the knob and pressing the knob to select

6. Spin knob to find your file. Press knob to select file for printing — 6. Spin knob to find your file. Press knob to select file for printing

7. Your print will start!

8. Watch the first layer (or few) of printing for problems. Press the knob to select stop if something goes wrong — 8. Watch the first layer (or few) of printing for problems. Press the knob to select stop if something goes wrong

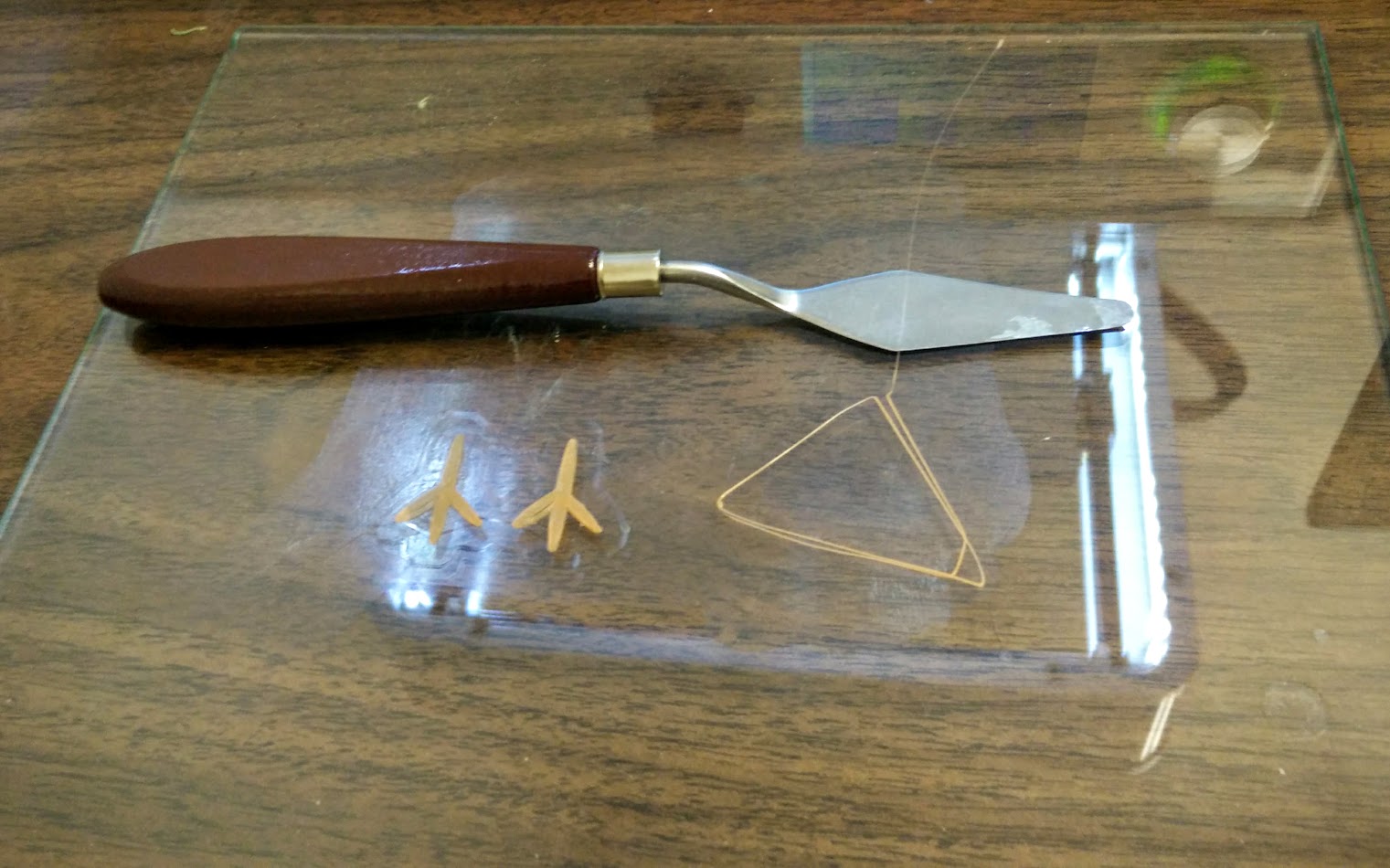

9. Print done! Use a flat tool to remove your print from the glass — 9. Print done! Use a flat tool to remove your print from the glass

10. Wash the glass bed. Just add water (and rubbing). — 10. Wash the glass bed. Just add water (and rubbing).
